Pure
Sine Charge Inverters
(UPS) |
|
|
| Charge Inverters,1000W-6000W |
| |
 |
Wall
Auto Switching Boost Inverter N-ASPSW Model
|
| 1000W -
2000W - 3000W - 4000W - 5000W - 6000W |
|
|
| |
|
N-ASPSW-D Series low frequency pure sine wave
Inverter & Charger |
|
Key Features |
|
|
|
-
Low
frequency pure sine wave |
|
-
Power saver
function |
|
- High
Power Factor 0.9-1 |
|
- Low
idle consume, Max 12W |
|
- Low DC
input, 1-3KW/12V (24) VDC, 4-5KW/24V (48) VDC |
|
- Big
charge current, 70Amp/12VDC, 35Amp/24(48) VDC |
|
- AVR
Function |
|
-
Back-Feed, Overload, short circuit, Battery low/high
Protection |
|
- Fault
recovery |
|
- Remove
control/RS232/USB is option |
- Transfer
Time 10ms
|
|
|
|
|
Technical Details |
| |
|
Item |
Model |
N-ASPSW1K |
N-ASPSW2K |
N-ASPSW3K |
N-ASPSW4K |
N-ASPSW5K |
N-ASPSW6K |
|
Capacity |
VA /
Watts |
1KVA/1KW |
2KVA/2KW |
3KVA/3KW |
4KVA/4KW |
5KVA/5KW |
6KVA/6KW |
|
Surge
rating (10s) |
|
3KVA |
6KVA |
9KVA |
12KVA |
15KVA |
18KVA |
|
Efficiency |
>95%
under AC mode,>88% under DC mode |
|
Power
Factor |
0.9~1.0， |
|
Static
Power Capacity |
12W |
|
Input |
Normal
voltage |
220VAC/110V |
|
220V
Voltage range |
184-270V+-4% |
|
110V
Voltage range |
92-150V+-4% |
|
Frequency range |
50Hz/60HZ -3 +5 Hz (Auto detection) |
|
Output |
Voltage
(V) |
220V/110V+-10% |
|
Frequency (Hz) |
50Hz/60HZ +-0.3 Hz |
|
Wave
form |
Pure
Sine Wave |
|
bypass
without Battery |
yes |
|
Transfer
Time |
10 ms
(typical) |
|
Overload
capacity |
DC
Mode(SMPS load) |
(110%<load<125%) ±10% for 15 minutes;
(125%<load<150%) ±10% for 60s;
Load>150% ±10% for 20s |
|
AC
Mode(SMPS load) |
by
breaker |
|
Protection |
Overload |
Current
limit under DC mode ,Breaker under AC mode |
|
Battery
Protection |
Over
charge, Over discharge,DC Breaker,Alarm |
|
Over
Temperature |
Variable
speed fan,LED lighting and alarm |
|
Back-Feed Protection |
yes |
|
short
Circuit. |
by
breaker.Faul after 10 secs |
|
Battery/Charger |
AC input |
95-127V, 194(164)--243V |
|
DC
input |
12VDC
/24VDC or 48VDC,external Battery |
|
Charge
Voltage |
for
12VDC system,Boost voltage 14-15.5V selectable for different
Battery. The others are multiple |
|
Charger
Current |
70A
/12VDC / 35A /24VDC,35A/48VDC,Three stage charger |
|
Charge
Manage |
digital
control |
|
Display |
LED |
Line On/
Inverter on / Fast Charger / Float charge / Over Temp. trip / Over
load trip / Power Saver on |
|
Audible
Alarm |
Battery
Low,Battery High,Over Temp. Over load,Fail,Over charge |
|
Remote
control/RA232/USB |
yes.Option |
|
Power
Saver |
below
25W when enabled |
|
Working
Environment |
Temperature |
0°C to
40°C |
|
Noise |
60dB max |
|
Humidity |
5% to
95% |
|
Package
Size |
WxDxH
(mm) |
560*315*300 |
560*315*300 |
560*315*300 |
750*315*300 |
|
|
|
Gross
Weight |
|
18 |
21 |
23 |
36 |
|
|
|
|
|
|
|
|

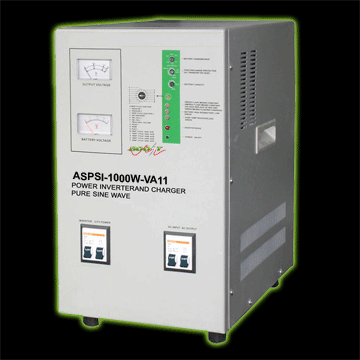

Auto Switching Boost
Inverter ASPSI Model |
|
|
|
1000W - 2000W - 3000W -
4000W - 5000W - 6000W |
| |
 |
Technical:
|
 |
Dimensions and Weight:
|
 |
| |
|
|
| |
|
Auto Switching Boost
Inverter ASPRNZ Model |
| |
|
1000W - 2000W - 3000W -
4000W - 5000W - 6000W |
|
|
|
 |
|
|
|
|
|
Key Features |
|
|
|
-
Micro Processor
Control |
|
- Wide
Input Frequency Range |
|
- Pure
Sine Wave |
|
-
Intelligent Automatic Voltage Regulating Technology |
|
-
Intelligent Automatic Voltage Charging Technology
Tec |
|
- over
load，short circuit protection |
|
- Over
temperature protection |
|
- Low
battery protection |
|
- Over
voltage, Low voltage protection |
|
-
Compatibility with generators |
|
-
Special LED Display Design |
|
|
|
|
|
|
ASPRNZ
500
|
ASPRNZ
1000
|
ASPRNZ
2000
|
ASPRNZ
3000
|
ASPRNZ
4000
|
ASPRNZ
5000
|
|
DC Input
|
|
Input Voltage(Vdc) |
12V
|
12V/24V
|
24V/36V
|
36V/48V
|
36V/48V
|
48V
|
|
Input Current(A) |
50A
|
50A
|
50A
|
75A
|
100A
|
125A
|
|
Input DC Range(Vdc) |
10~15A
|
20~30A
|
40~60A
|
|
AC Bypass
|
|
Input AC Range(Vac) |
160V~280V
|
|
Input Frequency(Hz) |
43~60HZ
|
|
Bypass Voltage(Vac) |
220V±10%
|
|
Input Current(A) |
2.3A
|
4.5A
|
9.1A
|
13.6A
|
18.2A
|
22.7A
|
|
Charge Current |
3~10A
|
5~15A
|
|
Transfer Time(ms) |
<=4 ms
|
|
Output
|
|
Output Voltage
|
220V±3%AC
|
|
Output Frequency
|
50HZ±1%
|
|
Power Factor
|
0.7
|
|
Capacity
|
350W
|
700W
|
1400W
|
2100W
|
2800W
|
3500W
|
|
Transfer time
|
<=4 ms
|
|
Generator working
|
Compatible with generator well
|
|
Waveform
|
Pure Sine Wave
|
|
Protection
|
|
Over Temperature
|
Yes
|
|
Over Voltage
|
Switch to battery output when mains beyond standard
regulation range
|
|
Under voltage
|
|
Over load
|
Fuse current limited for both mains and battery modes
|
|
Short circuit
|
|
Function
|
|
Panel
|
LED Display
|
|
Automatic charge
|
When UPS is off automatic charge by mains
|
|
Automatic recovery
|
After battery off UPS automatic shutdown, within 1 hour
if mains coming
then UPS can automatic recover to start.
|
|
Voltage
|
220V/230V optional by CPU following the real power
capacity
|
|
Frequency
|
50Hz/60Hz optional by CPU following the real power
capacity
|
|
Beeping
|
During the battery mode, the beeping sound or silence
optional
|
|
Environmental
|
|
Temperature
|
-20oC ~ 45oC
|
|
|
0% ~ 95%
|
|
|
≤40dB (1meter)
|
|
Physical
|
|
Net Weight
|
9.5kg
|
15kg
|
19.5kg
|
26.5kg
|
30.5kg
|
36kg
|
|
Gross Weight
|
12kg
|
18kg
|
23kg
|
30kg
|
34kg
|
39kg
|
|
Dimension for Unit
|
465 x 145 x 235 mm
|
470 x 200 x 355 mm
|
|
Dimension for Packing
|
510 x 220 x300 mm
|
575 x 310 x 455 mm
|
|
Output socket
|
2outlets
|
2outlets
|
3outlets
|
3outlets
|
3outlets
|
3outlets
|
|
|
|
|
|
|
|
|
|
|
|
